Lawn Mower Starter Not Engaging: Quick Fixes and Full Repair Guide – 2025

When your lawn mower won’t crank and the starter isn’t engaging, it’s frustrating—especially when the grass is getting tall. The good news: most “lawn mower starter not engaging” problems are caused by simple issues like a weak battery, loose cable, stuck solenoid, or a stuck bendix gear. Quick fix: ensure the battery is fully charged (12.6V+ for 12V systems), clean and tighten both battery terminals, and tap the starter lightly with a rubber mallet while turning the key—this often frees a stuck bendix or solenoid.

In this complete guide, you’ll learn all the common causes and step-by-step methods to diagnose and fix a non-engaging starter on both riding and walk-behind mowers. We’ll cover electrical checks, mechanical inspections, safety interlocks, flywheel engagement, and when to replace the starter. By the end, you’ll have multiple solutions—from quick fixes to advanced diagnostics—to get your mower starting reliably again.

Common Causes of a Lawn Mower Starter Not Engaging

• Dead or weak battery (under 12.4V) prevents solenoid/starter from engaging
• Corroded or loose battery cables and ground connections
• Faulty starter solenoid (clicks but no crank, or no click at all)
• Stuck or worn bendix gear (starter spins but won’t engage flywheel)
• Damaged or missing starter gear teeth / flywheel ring gear wear
• Faulty ignition switch or key switch
• Safety interlock switch issues (brake/clutch not depressed, PTO on, seat switch failed)
• Blown fuse or bad wiring (open circuit)
• Hydro-lock or mechanical engine seizure (starter can’t turn engine)
• Sheared flywheel key altering timing (engine kicks back)
• Contaminants: dirt, grass, or rust binding the starter drive

How to Fix a Lawn Mower Starter Not Engaging

Method 1: Quick Electrical Checks (Fast Wins)

Time: 10–20 minutes
Tools: Multimeter, 10/13mm wrenches, wire brush, dielectric grease

Diagnosing the Issue

• Symptoms: No sound at all, single click, or rapid clicking when turning the key.
• Goal: Verify battery health and cable integrity—the most common faults.

Fix Steps

1) Safety
– Remove spark plug wire(s) to prevent accidental start.
– Set parking brake; ensure blades (PTO) are off.

2) Check Battery Voltage
– Measure across terminals: 12.6–12.8V is fully charged; 12.4V is ~75%; below 12.2V likely won’t crank.
– If low, charge battery to 12.6V+ and retest.

3) Clean and Tighten Terminals
– Disconnect negative (black) first, then positive (red).
– Wire-brush posts and clamps to shiny metal.
– Reconnect positive first, then negative. Tighten snugly.
– Apply a thin layer of dielectric grease.

4) Inspect Cables and Ground
– Follow negative cable to frame/engine ground; remove and clean ground connection.
– Check for frayed, stiff, or corroded cables; replace if damaged.

5) Try to Start
– Turn the key. If it engages now, the issue was poor connection or low battery.

Testing

• Listen for a strong, single clunk from the solenoid followed by cranking.
• If you still hear clicking or nothing at all, proceed to Method 2.

Method 2: Solenoid and Ignition Circuit Testing

Time: 20–40 minutes
Tools: Multimeter, helper, jumper wire (12 AWG), safety glasses

Important: Use caution when bypassing. Keep hands clear of belts and the flywheel.

Diagnosing the Issue

• Solenoid clicks but no crank: weak battery, bad solenoid contacts, or starter issue.
• No click: ignition circuit, safety interlocks, blown fuse, or dead solenoid.

Fix Steps

1) Check Fuses
– Locate inline fuse near the battery or key switch (commonly 15–30A). Replace if blown.
– If it blows again immediately, you have a short to diagnose.

2) Safety Interlocks
– Riding mowers: Sit on seat, press brake/clutch fully, ensure PTO/blades OFF, shifter in neutral.
– Test switches:
– Seat switch: Wiggle while turning key.
– Brake switch: Depress pedal firmly; listen for click of solenoid.
– PTO switch: Toggle OFF/ON/OFF; ensure OFF for start.

3) Solenoid Coil Voltage
– With key in START, measure voltage at solenoid small terminal (S). Expect ~12V.
– If 12V present and no click: solenoid coil is likely bad; replace solenoid.
– If no 12V: suspect key switch, safety switches, or wiring. Trace back: key switch → seat/brake/PTO switches → fuse → battery.

4) Jump Test (Bypass Control Side)
– Momentarily bridge the two large solenoid studs with an insulated screwdriver or jumper (sparks are normal).
– If engine cranks: solenoid is bad; replace it.
– If no crank: starter or power cables are faulty, or engine is seized.

5) Direct Starter Test
– Bypass solenoid: Apply 12V directly to the starter’s main post from the battery positive; ground to engine block.
– Strong spin and engagement: solenoid is faulty.
– Spin but no engagement: bendix/gear issue (go to Method 3).
– No spin: starter motor is faulty; rebuild or replace.

Testing

• After replacing a solenoid or fixing wiring, verify consistent engagement 3–5 times in a row.

Method 3: Bendix Gear and Starter Drive Inspection

Time: 30–60 minutes
Tools: Socket set, Torx/Allen bits (varies by brand), brake cleaner, dry lube/graphite, small brush, rubber mallet

Diagnosing the Issue

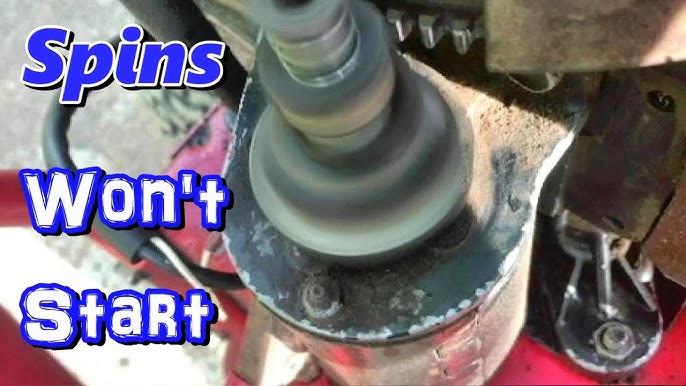

• Starter spins freely but doesn’t turn the engine.
• Grinding noise or occasional engagement.
• Likely a stuck or worn bendix (pinion) gear or fouled spiral shaft.

Fix Steps

1) Access the Starter
– Disconnect battery negative.
– Remove blower housing/top cover as needed to access starter and flywheel.
– Note wiring and remove starter mounting bolts.

2) Inspect the Pinion Gear
– Check for rounded or missing teeth.
– Slide the gear along the shaft; it should move freely up and down the helix.

3) Clean and Lube
– Spray brake cleaner to remove grease, dirt, and grass.
– Dry completely; apply a dry lubricant (graphite/PTFE). Avoid heavy grease—it attracts debris and causes sticking.

4) Free a Stuck Bendix
– Gently tap the starter body with a rubber mallet while rotating the gear by hand.
– If spring is broken or gear worn, install a starter drive/bendix kit for your model.

5) Reinstall and Align
– Refit the starter. Ensure gear aligns with flywheel ring gear and has proper clearance.

Testing

• Reconnect battery and bump the key—confirm the gear jumps up to engage the flywheel and retracts when released.

Method 4: Flywheel Ring Gear and Engine Checks

Time: 30–90 minutes
Tools: Flashlight, pick, feeler gauge, socket for flywheel nut, breaker bar

Diagnosing the Issue

• Repeated grinding, partial engagement, or starter kicks back.
• Possible worn ring gear, sheared flywheel key, or engine can’t rotate.

Fix Steps

1) Inspect Ring Gear
– Rotate the flywheel by hand and inspect teeth 360°. Replace the ring gear or flywheel if teeth are heavily worn or missing in spots.

2) Check for Hydro-lock
– Remove spark plug(s). Try turning engine by hand. If it won’t move and fuel sprays out, you’ve got hydro-lock from a leaky carburetor needle.
– Crank briefly to expel fuel (spark disabled), then reinstall plugs. Address the carb/needle and change oil if contaminated.

3) Flywheel Key
– If hard backfires or starter kicks back, the flywheel key may be sheared.
– Remove flywheel nut, pull flywheel (use a puller), inspect/replace key, torque to spec (often 55–65 ft-lb for many small engines; check your manual).

4) Valve Lash (Overhead Valve engines)
– Excessive valve lash can cause compression release not to function, making cranking very hard.
– Set intake/exhaust clearances to manufacturer spec (e.g., Briggs typical 0.004–0.006″ intake, 0.006–0.008″ exhaust; verify your model).

Testing

• With plugs reinstalled, try starting. Engagement should be smooth without grinding or kickback.

Method 5: Ignition Switch and Wiring Repair

Time: 30–60 minutes
Tools: Multimeter, wiring diagram for your model, contact cleaner

Diagnosing the Issue

• No click, no crank, battery OK, fuses OK.
• Wiggling key or harness briefly works.

Fix Steps

1) Test Key Switch
– With key in START, verify 12V is sent from “B” (battery) to “S” (start) terminal.
– If intermittent or no output, replace the ignition switch.

2) Harness and Connectors
– Inspect blade connectors for looseness, heat discoloration, or corrosion.
– Clean with contact cleaner; tighten terminals or replace damaged connectors.

3) Replace Damaged Sections
– Use proper gauge wire (typically 14–12 AWG for start circuits) and crimp with quality insulated terminals. Heat-shrink for weather resistance.

Testing

• Confirm consistent engagement across multiple starts and after vibration.

Prevention and Maintenance Tips

• Keep battery maintained: trickle-charge during off-season; store fully charged.
• Clean and protect terminals twice a season with dielectric grease.
• Inspect starter gear and flywheel area for debris at least once per mowing season.
• Avoid heavy grease on the bendix. Use dry lube only.
• Ensure safety switches are aligned and working; replace worn pedal or PTO switch hardware.
• Service carb to prevent fuel flooding/hydro-lock if you smell fuel in the oil.
• Follow proper storage: fuel stabilizer, shutoff valve closed, battery disconnected.

Pro Tips

• Use a load tester: A battery can show 12.6V but drop under load. Load-test to 9.6V minimum at 1/2 CCA for 15 seconds.
• Upgrade ground: Add a dedicated ground strap from engine block to frame if you see intermittent cranking.
• Star washer under ground lug: Bites through paint for a reliable ground.
• Verify charging system: With engine running, you should see 13.4–14.5V at the battery. Low voltage shortens battery life and causes starting issues.
• Mark suspect teeth: If ring gear damage is localized, the starter will grind at certain flywheel positions. Rotate past the bad spot to confirm diagnosis.
• Replace solenoid with OEM or heavy-duty equivalent; cheap units often fail early.
• Photograph wiring before disassembly to avoid misrouting.

When to Call a Professional

• You smell electrical burning or see melted wiring or connectors.
• The engine will not rotate by hand even with spark plugs removed.
• You suspect internal engine damage or need flywheel/valve adjustments and lack tools.
• Repeated fuse blowing indicates a short you can’t locate.
• Starter draws excessive current (cables get hot, lights dim) without cranking—possible internal short.

What to look for in a service provider:
– Small engine certification and experience with your brand (Briggs & Stratton, Kohler, Kawasaki, Honda).
– Clear diagnostic fee and written estimate.
– Warranty on parts and labor (typically 30–90 days).

Typical costs (varies by region/model):
– Diagnostic: $40–$90
– Battery: $35–$120
– Solenoid: $15–$50 part; $50–$120 installed
– Starter motor: $80–$250 part; $120–$300 installed
– Flywheel/ring gear: $80–$250 part; 1–2 hours labor

Warranty considerations:
– Newer mowers may have electrical and starter components covered. Using non-OEM parts can void coverage—check your manual.

FAQ

Q: My lawn mower clicks but won’t start—what’s the most likely cause?

A: A weak battery or corroded connections is most common. Verify 12.6V at the battery, clean/tighten terminals and grounds, and load-test the battery. If voltage is good, the solenoid may have burned contacts.

Q: The starter spins but doesn’t turn the engine. What’s wrong?

A: The bendix gear isn’t engaging the flywheel. Clean the starter drive and shaft, use dry lube, and inspect for worn teeth. Replace the starter drive if worn or sticking.

Q: There’s no sound at all when I turn the key. Where do I start?

A: Check the fuse, battery voltage, and safety switches (PTO off, brake pressed, seat occupied). Then test for 12V at the solenoid “S” terminal during start. No voltage indicates an ignition or interlock issue.

Q: Can a bad ground cause the starter not to engage?

A: Yes. A poor ground at the engine block or frame can drop voltage enough to prevent solenoid engagement or full starter torque. Clean and tighten all ground connections.

Q: How do I know if the engine is hydro-locked?

A: If the engine abruptly stops during cranking and fuel sprays mist from the spark plug hole when turned over without the plug, it’s hydro-locked. Remove fuel from the cylinder, change contaminated oil, and fix the carburetor needle/seat.

Q: Should I use grease on the starter gear?

A: No. Heavy grease attracts dirt and grass, causing the bendix to stick. Use a dry lubricant like graphite or PTFE on the starter shaft and gear.

Q: My ring gear has a few damaged teeth. Do I need to replace it?

A: Localized damage will cause intermittent grinding at that position. While you might start by rotating past the damaged spot, replacement is the reliable fix to prevent further starter and gear damage.

Q: Is jump-starting from a car OK?

A: Jumping a 12V mower from a 12V car battery is generally fine with the car engine off. Observe polarity and avoid cranking for more than 10 seconds at a time. Let cables cool between attempts.

Alternative Solutions and Upgrades

If repeated starter failures occur or parts are costly, consider:
– Upgrading to a higher-torque OEM starter if available for your engine model.
– Installing a battery with higher CCA (cold cranking amps) for better engagement in cold conditions.
– Using a smart battery maintainer to keep voltage optimal and extend battery life.
– Manual recoil backup (on some walk-behind/compact riders) as an interim solution.

Get Your Lawn Mower Starting Again

Following this guide, you now have multiple solutions to fix a lawn mower starter not engaging:
– Quick electrical checks: charge and clean battery/grounds
– Solenoid and ignition circuit diagnostics and replacement
– Bendix gear cleaning or starter drive replacement
– Flywheel, hydro-lock, and valve lash inspections
– Wiring and switch repairs to restore reliable engagement

Don’t let a stubborn starter derail your weekend. Work through the steps in order—most issues resolve with a charged battery, clean connections, and a functioning solenoid or bendix. If you still struggle, a professional can confirm the diagnosis quickly and get you back to mowing.

Have you fixed your lawn mower starter not engaging? Share your experience or specific model details in the comments to help other readers. Found this helpful? Bookmark it for your next tune-up and keep your mower starting strong all season.
