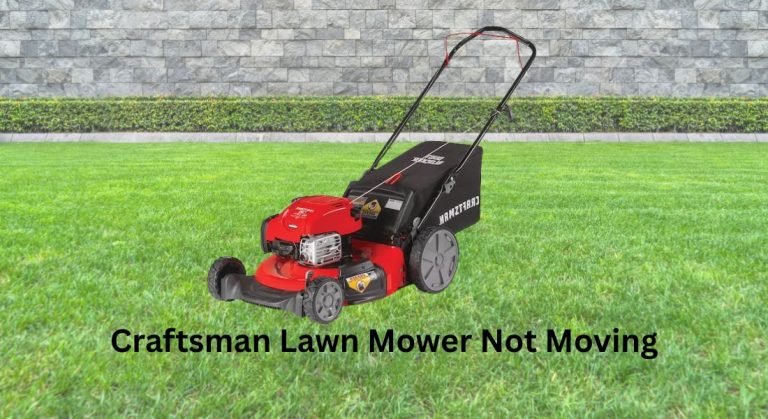

When your Craftsman lawn mower won’t move, it’s frustrating—especially when the grass is getting long. The good news: many “Craftsman lawn mower not moving” issues have quick, DIY fixes. Start with the simplest solution: disengage the parking brake, ensure the transmission/bypass lever is in drive (not push mode), and check the drive belt for slips. In many cases, re-engaging the hydrostatic bypass rod or tightening a loose drive belt gets you moving again in minutes.
In this complete guide, you’ll learn all the common causes behind Craftsman riding and walk-behind mowers not moving, along with step-by-step methods to diagnose and fix each one. From a stretched drive belt to a failed transmission, we’ll cover fast checks, detailed repairs, and prevention tips so you can get your mower rolling reliably by the end of the article.
Common Causes of a Craftsman Lawn Mower Not Moving
- Parking brake engaged or safety switch not releasing
- Hydrostatic bypass control left in “push” mode
- Drive belt worn, off the pulleys, or broken
- Idler pulley or tension spring failure (no belt tension)
- Drive cable (walk-behind) out of adjustment or broken
- Axle key/shear key missing or broken (wheels spin free)
- Transmission oil low (hydrostatic models) or air in system
- Shift linkage out of adjustment or disconnected
- Differential/gearbox failure (manual gear models)
- Wheels or transmission stuck due to debris or rusted components
Parking Brake or Safety Interlock
If the parking brake is on or the seat/brake safety interlock doesn’t release, the transmission may not engage. Verify that the seat switch and brake/clutch pedal switch function and wiring isn’t loose.
Hydrostatic Bypass Lever in Push Mode
Hydrostatic Craftsman mowers (common on many T-series tractors) have a bypass rod/lever that allows pushing the mower without running the engine. If left open, the mower won’t drive. Locate and push the rod fully in (or set the lever to “Drive”).
Worn or Slipped Drive Belt
A stretched, glazed, or broken drive belt won’t transfer power from the engine to the transmission. Check for cracks, glazing, frays, or belt off-track. Belts are wear items and often the root cause.
Idler Pulley or Tension Spring Issues
If the idler pulley bearing seizes or the tension spring breaks, the belt loses tension and slips. Look for wobbling pulleys, missing/broken springs, or excessive belt slack.
Drive Cable Out of Adjustment (Walk-Behind)
On self-propelled walk-behind Craftsman mowers, a stretched or broken drive cable prevents engagement. Adjust the cable to spec or replace if frayed.
Axle Key/Hub Key Sheared
If the axle spins but the wheel doesn’t drive, the woodruff key or square key in the wheel hub may be missing or sheared. This is common after hitting a curb or obstacle.
Low Hydrostatic Fluid or Air in System
Some sealed hydrostatic transmissions are not serviceable, but others have reservoirs. Low fluid or aeration causes weak or no drive. Bleeding the system after belt replacement is often required.
Shift Linkage or Drive Control Misadjusted
Manual gear transmissions require correct linkage. If the shifter doesn’t fully engage a gear, the mower may not move or only in one direction.
Transmission/Differential Failure
Rare, but internal transmission damage or stripped differential gears will cause no movement, often with grinding noises.
How to Fix a Craftsman Lawn Mower Not Moving
Below are four methods from quickest checks to deeper repairs. Identify your mower type: walk-behind self-propelled or riding mower (hydrostatic/manual).
Method 1: Quick Checks and Easy Wins
Diagnosing the Issue
- Does the engine run normally but the mower won’t move? Likely belt/bypass/cable/linkage.
- Moves in one direction only? Check linkage, hydrostatic fluid/bleed, or axle key.
- Engine bogs when trying to move? Could be stuck brakes, seized pulleys, or transmission.
Fix Steps (5–10 minutes)
1) Disengage parking brake
– Press and release the brake/clutch fully. Ensure brake indicator is off.
– For riding mowers, verify the seat switch connector is secure.
2) Set the hydrostatic bypass to “Drive”
– Locate the bypass rod/lever near the rear transaxle (often a pull/push rod).
– Push it fully in or switch lever to “Drive/Run.” If unsure, check owner’s manual for your model (e.g., T110, T1100, T2400, 917-series).
3) Inspect for obvious belt issues
– With engine off and key removed, look under the mower. Check the drive belt from engine pulley to transmission pulley.
– Re-seat the belt on pulleys if it’s off. Replace if cracked or frayed.
4) Check wheel hubs and axle keys
– Lift rear with jack stands on frame. Spin each wheel by hand.
– If axle spins but wheel doesn’t, remove wheel cap and verify key is present and intact.
5) For walk-behind models: test drive cable
– Squeeze the drive lever. If the cable has slack or doesn’t return, adjust the barrel adjuster near the handle to add tension. Replace if broken.
Testing
- Start the engine, release brake, and drive slowly forward and back. If it now moves, monitor for slipping—could indicate a stretched belt or weak tensioner.
Method 2: Drive Belt, Idler Pulley, and Tension Repairs (Riding Mowers)
A worn drive belt is the most common cause of a Craftsman lawn mower not moving.
Diagnosing the Issue
- Visual signs: shiny/glazed belt, cracks, missing chunks, belt riding low in pulley.
- Belt falls off or has excessive slack.
- Idler pulley wobble or grinding noise. Tension spring missing or stretched.
Fix Steps (45–90 minutes)
Important: Disconnect spark plug wire and remove key. For riders, engage parking brake and use jack stands.
1) Remove mower deck (if required)
– Lower deck, remove belt from engine pulley, pull release pins and disconnect linkages.
– Slide deck out. This improves access to the drive system on many Craftsman tractors.
2) Note belt routing
– Take photos. Routing decals are often under the footrest or hood. If not, reference the parts diagram by model number (sticker under seat).
3) Remove old belt
– Relieve tension by moving the idler arm away from belt.
– Pull belt off engine and transmission pulleys.
4) Inspect and replace pulleys and spring
– Spin idler pulleys by hand. Replace if rough, noisy, or wobbly.
– Check the idler arm bushing and pivot—lubricate if dry, replace if sloppy.
– Inspect the tension spring. Replace if stretched, broken, or rusty.
5) Install new OEM-spec belt
– Use the exact part number (e.g., Craftsman 532197253 or model-specific). Non-OEM belts may slip or wear fast.
– Route per diagram, ensuring belt sits fully in pulley grooves.
6) Set proper tension
– Verify the idler spring is correctly connected to the specified holes.
– Ensure the belt deflects about 1/2–3/4 inch with moderate thumb pressure mid-span (varies by model).
7) Reinstall deck and check clearances
– Reattach deck linkages and belt.
– Ensure drive belt does not rub on guards or frame.
Testing
- Start engine, disengage brake, test forward/reverse on flat ground.
- If movement is weak or jerky, proceed to Method 3 to bleed a hydrostatic transmission.
Method 3: Hydrostatic Transmission Bleed and Fluid Checks
Hydrostatic transaxles trap air when a belt is replaced or after towing. Bleeding restores full drive.
Diagnosing the Issue
- Mower moves slowly or only after warming up.
- Jerky motion in forward/reverse after a belt change or storage.
- Bypass lever is in Drive, but performance is weak.
Fix Steps (20–30 minutes)
Important: Some Craftsman hydrostatics are “sealed” and not user-serviceable for fluid. Do not open sealed units. Consult your manual or transaxle label (e.g., Hydro-Gear/Tuff Torq).
1) Safely lift rear wheels
– Place rear on jack stands so wheels can spin freely.
2) Bleed procedure
– With engine running at low throttle and brake off, set the bypass to Drive.
– Move the control pedal/lever to full forward for 5 seconds, then to full reverse for 5 seconds.
– Repeat this cycle 5–10 times to purge air.
– Lower mower and test on ground.
3) Check external reservoir (if equipped)
– Some units have a small reservoir. Fill to the “Cold” line with the specified oil (often 20W-50 or specific hydro oil—verify by transaxle model).
– Do not overfill. Cap securely and repeat bleeding.
4) Inspect fan and cooling
– Ensure the hydrostatic cooling fan on the transaxle is intact and unobstructed. Replace broken fan blades to prevent overheating and power loss.
Testing
- Drive the mower for 5–10 minutes. If drive improves, the issue was air. If still weak, belt slip or internal wear may be present.
Method 4: Linkage, Cable, and Axle Key Repairs
Diagnosing the Issue
- Shifter feels loose or doesn’t “click” into gear.
- Mower moves in reverse but not forward (or vice versa).
- One wheel spins, the other doesn’t, or mower freewheels.
Fix Steps (30–60 minutes)
1) Check shift/drive linkage
– Inspect the rod from the pedal/lever to the transmission. Tighten loose fasteners, replace worn bushings.
– Adjust linkage per manual so neutral, forward, and reverse positions align.
2) Brake system check
– A stuck brake can prevent movement. Inspect the brake disc and caliper on the transaxle.
– Free seized caliper linkage with penetrating oil, adjust brake to spec (usually slight free play).
3) Replace axle key if missing/sheared
– Remove the wheel cap and clip, slide wheel off.
– Inspect keyway. Insert new key matching size (often 1/4-inch square key).
– Reinstall wheel and secure.
4) Walk-behind: adjust or replace drive cable/belt
– Turn the cable barrel adjuster to remove slack until the wheels engage firmly when lever is squeezed but freewheel when released.
– Replace worn drive belt and worn wheel pinions/gears inside the drive wheels.
Testing
- Drive on a slight incline. If it slips only under load, suspect belt or internal transmission wear.
How to Prevent Future Drive Issues
- Clean undercarriage and belt area after each mow to prevent debris from throwing the belt.
- Inspect the drive belt every 25 hours or monthly during the season; replace at first sign of glazing or cracking.
- Keep idler pulleys and pivots clean and lubricated per manual.
- Do not tow or push hydrostatic mowers with the bypass closed; always open the bypass to prevent internal damage.
- Avoid prolonged heavy loads and steep inclines that overheat the hydrostatic unit; keep the cooling fan intact.
- For walk-behind models, avoid storing with drive cable under tension; release the bail to prevent stretching.
Pro Tips
- Use OEM or high-quality belts. Slight differences in width/angle cause slip and early failure.
- Take clear photos before disassembly—routing and spring hole placement matter.
- Replace idler pulleys and tension springs whenever you install a new belt if they show any wear.
- After washing, run the mower for a few minutes to spin-dry pulleys and prevent rust on brake and linkage parts.
- Mark the bypass lever position with a paint pen to avoid accidentally leaving it in push mode.
- If your mower slows dramatically after 20–30 minutes, the hydro may be overheating—clean around the transmission and replace a broken cooling fan.
- Store with tires properly inflated; low pressure can make it feel like the transmission is weak.
When to Call a Professional
- Grinding or clunking noises from the transmission or differential.
- Mower won’t move after new belt, pulleys, and proper bleed.
- Oil leaks from the hydrostatic case or axle seals.
- Shifter won’t engage any gear even after linkage adjustment.
- Recurrent axle key failures (hub or axle keyway may be worn).
What to look for in a service provider:
– Experience with Craftsman/AYP/Husqvarna-built tractors (many Craftsman riders are AYP/Husqvarna platforms).
– Access to OEM parts and service manuals.
– Diagnostic warranty on work performed.
Typical costs:
– Drive belt replacement: $90–$200 parts/labor depending on model.
– Idler pulley/spring service: $50–$150.
– Hydrostatic transaxle replacement: $350–$900+ parts, plus labor.
– Walk-behind drive cable and belt: $40–$120.
Warranty considerations:
– Modifying sealed transmissions can void coverage. If your mower is under warranty, consult Sears/Craftsman support or the retailer before opening the transaxle.
FAQ
Q: Why does my Craftsman riding mower engine run but it won’t move?
A: Most often, the drive belt is off, worn, or the hydrostatic bypass lever is in push mode. Check the belt routing/tension, ensure the bypass is set to Drive, and verify the parking brake is fully released.
Q: My mower moves slowly and only after warming up—what’s wrong?
A: Air in the hydrostatic system or low fluid (if serviceable) can cause weak drive until warm. Bleed the hydro by cycling forward/reverse with wheels off the ground. Also check belt slip and a broken hydro cooling fan.
Q: It moves in reverse but not forward. What should I check?
A: Inspect the forward/reverse linkage adjustment, belt condition, and the transmission control arm. On hydro models, a misadjusted control linkage can bias one direction.
Q: My walk-behind Craftsman self-propelled won’t pull. Cable or belt?
A: If the lever feels loose with little resistance, adjust the cable. If the cable is taut but wheels still don’t pull, the drive belt or transmission/wheel gears may be worn. Inspect the wheel pinions and internal gear rings.
Q: Can I tow my Craftsman mower?
A: Only short distances and only with the hydrostatic bypass lever open. Towing with the bypass closed can damage the hydro. Avoid hills or towing at speed.
Q: How do I find the right drive belt part number?
A: Check the model/serial sticker (under the seat or on the deck for riders; deck for walk-behind). Look up the parts diagram on Sears PartsDirect or the owner’s manual. Use the exact OEM spec.
Q: The belt keeps coming off. What’s causing it?
A: Misrouted belt, bent idler arm, worn pulley bearings, missing belt guides, or excessive deck movement can all throw the belt. Replace any bent/worn components and ensure guides are 1/8–1/4 inch from the belt without rubbing.
Alternative Solutions
If your Craftsman lawn mower not moving issue stems from a failing hydrostatic transmission and replacement is costly, consider:
| Solution | Pros | Cons | Best For |
|---|---|---|---|
| Replace with OEM hydro transaxle | Restores like-new performance, bolt-in fit | Highest cost | Newer mowers worth investing in |
| Install quality used transaxle | Lower cost | Unknown wear history, shorter lifespan | Budget repairs |
| Upgrade to newer mower | Warranty, improved efficiency | Highest upfront cost | Units with multiple major issues |
| Convert to manual gear (rare) | Lower future repair costs | Complex, model-specific, often impractical | DIY experts with matching donor parts |
Get Your Craftsman Lawn Mower Working Again
Following this guide, you now have multiple solutions to fix your Craftsman lawn mower not moving:
– Quick checks: brake off, bypass in Drive, belt in place
– Belt, idler pulley, and tension spring inspection and replacement
– Hydrostatic bleed and cooling fan checks
– Linkage, cable, and axle key diagnosis and repair
– Preventive maintenance to avoid future drive problems
Don’t let a simple belt or bypass lever sideline your weekend. Work through the methods in order, and you’ll have your Craftsman mower back to full drive in no time.
Have you successfully fixed your Craftsman lawn mower not moving? Share your experience and model number in the comments to help other readers troubleshoot faster. Found this helpful? Bookmark it for when the mowing season ramps up again.
