When your Craftsman lawn mower’s key start isn’t working, it’s frustrating—especially when the grass keeps growing. The good news: many starting issues are quick fixes. Before you worry about major repairs, try the fastest solution—check the battery and connections. A weak battery or corroded terminals is the most common cause of a no-crank situation. Clean the terminals, tighten the cables, and jump-start or charge the battery to get mowing again.
In this guide, you’ll learn every way to diagnose and fix a Craftsman key-start system—from simple battery checks to testing the starter solenoid, safety switches, ignition switch, fuse, and wiring. You’ll also learn how to prevent starting issues in the future, when to call a pro, and how much repairs typically cost. By the end, you’ll have your mower starting reliably again.
Common Causes of Craftsman Lawn Mower Key Start Not Working
- Dead or weak battery
- Corroded or loose battery cables and grounds
- Blown fuse in the starting circuit
- Faulty safety switches (seat, brake/clutch, blade/parking brake)
- Bad starter solenoid or faulty solenoid ground
- Worn-out starter motor or stuck Bendix gear
- Faulty ignition switch or broken key switch wiring
- Bad ground connection between engine/frame
- Corroded or damaged wiring harness/connector
- Wrong fuel, flooded engine, or vapor lock (engine turns but won’t start)
- Faulty spark plug or coil (engine cranks but won’t fire)
How to Fix a Craftsman Key Start That’s Not Working
Important: Always remove the key and disconnect the negative battery cable before working on electrical components. Wear eye protection when dealing with batteries. If you need to test cranking, keep hands and tools clear of belts, blades, and moving parts.
Method 1: Quick Battery and Connection Check
This resolves most key start issues in minutes.
Diagnosing the Issue
- Symptoms: No click, no crank, dim or flickering dash lights, or a single click from the solenoid.
- Tools: 10mm/12mm wrench, multimeter (optional), wire brush, baking soda/water solution.
Fix Steps
- Inspect the battery
– Check for bulging case, leaks, or corrosion around posts.

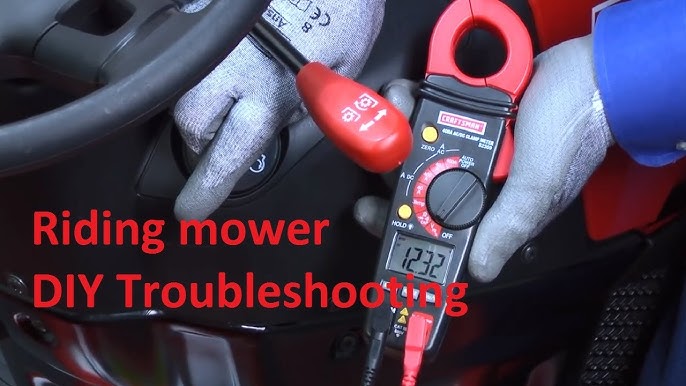

– If you have a multimeter, measure voltage at rest:- 12.6–12.8V = fully charged
- 12.3–12.5V = partially charged (may not crank)
- Below 12.2V = weak/dead; needs charging or replacement
- Clean terminals
– Mix a teaspoon of baking soda in warm water.
– Disconnect negative (black) cable first, then positive (red).
– Brush corrosion off posts and cable ends. Rinse and dry. - Reconnect and tighten
– Reinstall positive cable first, then negative.
– Tug test: cables should not rotate or wiggle. - Check ground connections
– Trace the negative cable to the frame/engine ground bolt; remove, clean, and tighten. - Try a jump-start
– Use a 12V automotive battery or jump pack.
– Connect positive to positive, negative to mower frame (not battery).
– Turn key. If it cranks and starts, your battery is likely weak or failing.
Testing
- After cleaning and tightening, turn the key:
- Strong crank: resolved.
- Single click: proceed to solenoid checks.
- No click/no lights: check fuse and ignition switch.
Time: 10–20 minutes
Method 2: Check Fuse and Safety Switches
Most Craftsman riding mowers include a main fuse and several interlock switches that prevent starting unless conditions are safe.
Diagnosing the Issue
- Symptoms: No crank with normal battery, or intermittent starting that depends on seat/brake position.
Fix Steps
- Locate and check the main fuse
– Typically near the battery or under the seat, in a small holder.
– Common sizes: 15A–30A blade fuse.
– Pull and inspect: if melted or broken, replace with the same rating.
– If the new fuse blows immediately, there’s a short—inspect wiring before proceeding. - Inspect safety switches and positions
– Seat switch: must be pressed (you seated) or bypassed by brake engaged on some models.
– Brake/clutch switch: pedal must be fully depressed.
– PTO/blade switch: must be OFF to start.
– Parking brake: engaged on many models for starting.
– Wiggle-test: while turning the key, firmly press the brake pedal and toggle the seat/PTO positions—if it cranks intermittently, a switch or its connector is faulty. - Check connectors and alignment
– Unplug and replug safety switch connectors to clear oxidation.
– Ensure switch plungers fully actuate when pedals/levers are engaged.
Warning: Do not permanently bypass safety switches. Temporary bypass for diagnosis is acceptable but restore immediately.
Testing
- With brake fully pressed and PTO OFF, turn the key.
- If cranking returns after reseating connectors or correcting lever positions, replace the failing switch if the issue recurs.
Time: 10–25 minutes
Method 3: Test the Starter Solenoid
The solenoid is the small relay that connects battery power to the starter. It usually clicks when you turn the key.
Diagnosing the Issue
- Symptoms: Loud single click but no crank, or no click at all, depending on failure mode.
- Tools: Multimeter or test light, wrench, insulated pliers.
Fix Steps
- Identify terminals
– Two large posts: one from battery positive, one to starter motor.
– One or two small terminals: control signal from the key/safety circuit. - Check for control voltage
– With key in START and brake engaged, measure the small terminal(s): you should see ~12V.
– No 12V = issue with ignition switch or safety interlock circuit; go to Method 4. - Bypass test (spark risk—be cautious)
– Short the two large posts briefly with an insulated tool.
– If the starter spins strongly, the starter motor is good and the solenoid is bad—replace the solenoid.
– If nothing happens, suspect the starter motor, ground, or battery. - Voltage drop test
– Measure battery side large post: ~12.6V.
– While holding key to START, measure the starter side post:- 0V = solenoid not closing (faulty coil or no control voltage).
- Low voltage (e.g., 6–9V) = high resistance in cables or failing solenoid contacts.
Testing
- Replace the solenoid if it fails the bypass or voltage tests.
- After replacement, confirm consistent cranking.
Time: 20–40 minutes
Method 4: Check the Ignition Switch and Start Circuit
If the solenoid isn’t getting 12V on the small terminal when you turn the key, trace the circuit.
Diagnosing the Issue
- Symptoms: No click/no power to solenoid; lights may work.
- Tools: Multimeter, wiring diagram for your model (often under the seat or in the manual).
Fix Steps
- Inspect the ignition switch plug
– Remove the dash panel if needed.
– Look for melted plastic, corrosion, or loose spades.
– Clean contacts and reseat. - Continuity test (key switch)
– With the switch unplugged, test continuity between B (battery) and S (start) terminals in START position.
– No continuity = replace ignition switch. - Verify power feed and output
– Confirm 12V at B terminal.
– Turn key to START; check 12V on S terminal. - Trace interlocks
– The S output often routes through safety switches to the solenoid. Use the diagram to identify the chain and test for 12V at each step while holding START. - Repair wiring faults
– Fix frayed wires, broken splices, or corroded connectors.
– Use heat-shrink butt connectors for durability.
Testing
- After repairs, verify that the solenoid small terminal gets 12V in START and the engine cranks.
Time: 30–60 minutes
Method 5: Starter Motor and Engine Checks
If the solenoid engages but the engine won’t turn, the starter or engine may be at fault.
Diagnosing the Issue
- Symptoms: Click or heavy clunk, starter spins slowly, grinding noise, or no spin even with good voltage.
Fix Steps
- Check starter mounting and ground
– Ensure starter bolts are tight and mating surfaces clean. - Inspect the Bendix gear
– On many mowers, the starter gear rides on a helical shaft and must extend into the flywheel.
– If stuck with debris/rust, clean with electrical cleaner and lightly lube with dry lube (not grease). - Bench test the starter
– Remove starter, connect to a 12V source briefly: positive to the post, negative to body.
– Strong spin = starter OK; weak/no spin = replace starter. - Check engine for hydrolock
– Remove spark plug(s) and attempt to crank.
– If fuel/oil sprays out, the engine was flooded or had carburetor leak-down. Change oil if it smells like gas, then reinstall plugs and try again. - Inspect flywheel teeth
– Damaged ring gear can prevent engagement; replace if teeth are stripped in sections.
Testing
- Reinstall and torque starter properly.
- Confirm smooth, strong cranking.
Time: 30–90 minutes
Method 6: Engine Cranks but Won’t Start
If the key turns the engine but it won’t fire, the issue is fuel/air/spark—not the start circuit.
Diagnosing the Issue
- Symptoms: Consistent cranking, no start, occasional sputter.
Fix Steps
- Spark test
– Use an inline spark tester; look for strong blue spark.
– Weak/no spark: check spark plug (gap ~0.030″), replace if fouled; inspect coil and kill wire. - Fuel delivery
– Ensure fresh fuel (less than 30 days old).
– Check fuel shutoff valve, filter flow, and fuel solenoid (if equipped).
– Spritz carb cleaner into intake; if it fires briefly, clean carburetor/jets. - Air supply
– Ensure air filter isn’t clogged; replace if saturated with oil/dirt. - Safety interlocks
– Some systems cut spark when PTO is engaged; verify positions.
Time: 20–60 minutes
How to Prevent Future Starting Issues
- Keep the battery charged
- Use a smart maintainer during off-season or if you mow infrequently.
- Clean and protect terminals
- Apply dielectric grease or terminal spray after cleaning.
- Store with stabilized fuel
- Add fuel stabilizer and run for 5 minutes before storage; or drain tank and carb.
- Exercise the starter
- Start the mower monthly in winter to keep contacts clean and battery healthy.
- Inspect wiring annually
- Look for rodent damage, rub-through, or corroded connectors.
- Replace safety switches at first sign of intermittent behavior
- They’re inexpensive and commonly fail with age.
Pro Tips
- Always depress the brake/clutch fully and set the PTO to OFF before starting; many no-starts are just interlock conditions.
- If you have repeated solenoid failures, check for high resistance grounds and replace undersized/oxidized battery cables.
- Use a load tester for the battery; voltage can read 12.5V but drop under load. Replace if cold-cranking amps are below spec.
- Label wires and photograph connections before disassembly to avoid miswiring.
- Never crank for more than 10 seconds at a time; wait 30–60 seconds between attempts to prevent starter overheating.
- For persistent fuse blows, inspect harness points where it passes around the frame and deck—sheet metal edges can cut insulation.
- Consider upgrading to an AGM lawn/garden battery for lower self-discharge and better vibration resistance.
When to Call a Professional
- You hear grinding or see damaged flywheel teeth.
- The main fuse blows repeatedly even after wiring inspection.
- The ignition switch connector is melted, indicating high resistance or short circuits.
- The engine is hydrolocked repeatedly due to carburetor leakage—carb rebuild needed.
- You’re uncomfortable working with live electrical circuits.
What to look for in a service provider
– Experience with Craftsman/Briggs & Stratton, Kohler, or Kawasaki engines (match your model).
– Transparent diagnostic fee (typically $50–$100).
– Warranty on parts/labor (30–90 days common).
– Quick turnaround and parts availability.
Typical costs (ranges)
– Battery: $35–$90
– Solenoid: $15–$40
– Safety switch: $10–$25 each
– Starter motor: $80–$180
– Ignition switch: $20–$60
– Professional diagnosis/repair: $120–$300 depending on issue
Warranty considerations
– If your mower is under warranty, avoid modifications and contact Craftsman support or an authorized service center first. Keep receipts for batteries and electrical parts.
FAQ
Q: My Craftsman mower does nothing when I turn the key—no click, no lights. What should I check first?
A: Start with the battery connections and the main fuse. Clean and tighten terminals, verify ground to frame, and check for 12V at the battery. Replace a blown fuse with the same rating and inspect for shorts if it blows again.
Q: I hear a click but the engine won’t turn. Is the solenoid bad?
A: Often yes, but confirm first: ensure the battery is fully charged and the cables are clean. If you have 12V at the solenoid control terminal and the click is present but no power flows to the starter, the solenoid contacts are likely worn—replace the solenoid.
Q: Can I jump-start my Craftsman mower with a car?
A: Yes, using a 12V system. Keep the car OFF to avoid surges. Connect positive to positive, and negative to the mower frame. Remove the cables immediately after starting.
Q: The mower starts only when I wiggle the seat or brake—what’s wrong?
A: A failing safety switch or loose connector. Inspect, reseat, and test the seat and brake/clutch switches. Replace the suspect switch if the problem persists.
Q: My battery tests at 12.5V but it still won’t crank. Why?
A: Voltage at rest can be misleading. Under load, an old battery may drop below 9.6V and the solenoid won’t hold. Perform a load test or try a known-good battery.
Q: How do I find the fuse on my Craftsman mower?
A: Look near the battery under the seat, along the harness to the ignition switch, or near the solenoid. It’s usually in a small inline holder with a 15–30A blade fuse.
Q: The starter spins but doesn’t engage the engine. What should I do?
A: The Bendix gear may be stuck or the flywheel ring gear damaged. Clean and dry-lube the Bendix shaft; inspect flywheel teeth. Replace damaged parts.
Alternative Solutions
If diagnosing electrical faults is challenging or intermittent, consider these options.
| Solution | Pros | Cons | Best For |
|---|---|---|---|
| Install a battery maintainer lead | Keeps battery charged, easy seasonal use | Requires power outlet | Seasonal storage, infrequent mowing |
| Replace battery and solenoid together | Resolves two common failure points at once | Higher upfront cost | Older mowers with repeated no-crank |
| Upgrade to AGM battery | Better vibration resistance, lower self-discharge | More expensive | Rough terrain, long storage |
| Mobile small-engine service | Convenience, professional diagnosis | Service fee | Users without tools/time |
Get Your Craftsman Mower Starting Again
By following this guide, you can resolve most Craftsman lawn mower key start issues quickly:
– Clean and tighten battery cables; charge or replace a weak battery
– Check the main fuse and safety interlock switches
– Test and replace a faulty starter solenoid or ignition switch
– Inspect the starter motor, Bendix gear, and engine for mechanical issues
– Address fuel, air, and spark if the engine cranks but won’t start
Don’t let a stubborn key start keep you from mowing. Work through these methods in order, and you’ll restore reliable starting with confidence.
